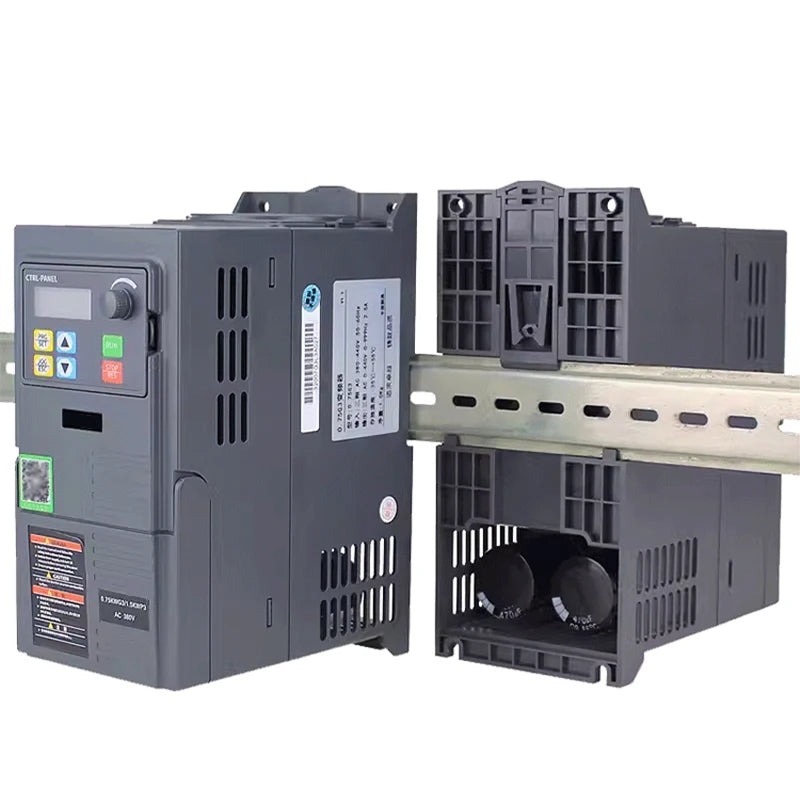

Hars VFD Inverter 220V 380V Variable Frequency Drive

Hars VFD Inverter 220V 380V Variable Frequency Drive

$110.99 USD
$0.00 USD $110.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Socket Type

Experience precision motor control with the Hars VFD Inverter, a Carrier-branded variable frequency drive for 220V and 380V systems.

  • Powerful yet versatile: supports single- and three-phase inputs across 0.4KW to 5.5KW for broad industrial use.
  • Achieve precise speed and torque with V/F control and open-loop vector options, maintaining speed accuracy within ±0.5%.
  • Easy integration with RS485 communication to connect to your automation network.
  • Wide operating range from 0 to 400 Hz and built-in P+PB braking for controlled stopping.

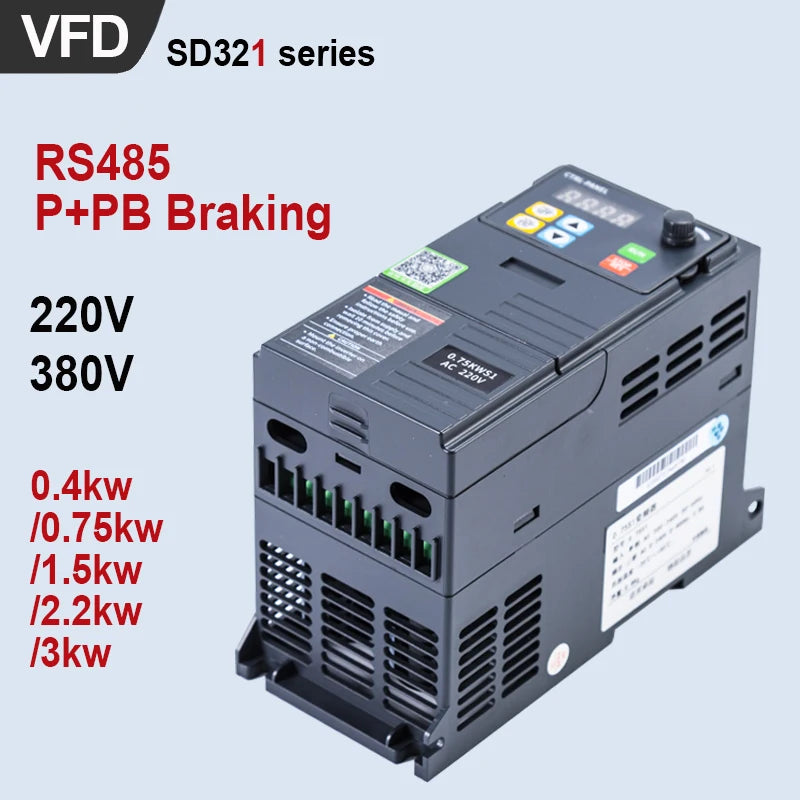

SD321 Series

Product Power

Input Voltage/Frequency

Output Voltage/Frequency

Output Current

Product Dimensions

Installation Dimensions

0.4S1-220V

0.4KW

single phase

200V-240V

50Hz/60Hz

3 phases

200V-240V

50Hz/60Hz

2.10 A

170*79*127 mm

160*60.5mm M5

0.75S1-220V

0.75KW

3.80 A

1.5S1-220V

1.5KW

7.00 A

2.2S1-220V

2.2KW

9.00 A

187*86*144 mm

173*68mm M4

3.0S1-220V

3.0KW

13.00 A

216*101*151 mm

204*83.5mm M4

4.0S1-220V

4.0KW

15.00 A

237*111*168 mm

216*88mm M5

5.5S1-220V

5.5KW

20.00 A

0.4S3-220V

0.4KW

3 phases
200V-240V
50Hz/60Hz

3 phases
200V-240V
50Hz/60Hz

2.10 A

170*79*127 mm

160*60.5mm M5

0.75S3-220V

0.75KW

3.80 A

1.5S3-220V

1.5KW

7.00 A

2.2S3-220V

2.2KW

9.00 A

187*86*144 mm

173*68mm M4

3.0S3-220V

3.0KW

13.00 A

216*101*151 mm

204*83.5mm M4

4.0S3-220V

4.0KW

15.00 A

237*111*168 mm

216*88mm M5

5.5S3-220V

5.5KW

20.00 A

0.4G3-380V

0.4KW

3 phases
340V-440V
50Hz/60Hz

3 phases
340V-440V
50Hz/60Hz

1.50 A

170*79*127 mm

160*60.5mm M5

0.75G3-380V

0.75KW

2.10 A

1.5G3-380V

1.5KW

3.80 A

2.2G3-380V

2.2KW

5.10 A

187*86*144 mm

173*68mm M4

3.0G3-380V

3.0KW

7.10 A

216*101*151 mm

204*83.5mm M4

4.0G3-380V

4.0KW

9.00 A

237*111*168 mm

204*83.5mm M4

5.5G3-380V

5.5KW

12.60 A

7.5G3-380V

7.5KW

16.10 A

237*111*168 mm

216*88mm M5

11.0G3-380V

11.0KW

25.00 A

249*143*172 mm

237*130mm M5

Functional Parameters

Description

Frequency

0.00Hz-400.00Hz

Carrier Frequency

2.0-16.0KHz

Frequency Setting Resolution

Analog setting: 0.1% of the highest frequency, Digital setting: 0.01Hz

Control Modes

V/F control, Open-loop vectro control

Speed Stability

±0.5%

Overload Capacity

G-type machine: With reverse-time-limit overload protection, 115% for 6 minutes, 150% for 1 minute

V/F Curves

Three modes: Linear, Quadratic, 1.5th power, 1.2nd power, User-defined V/F curve, V/F Separation

Acceleration Curve

Linear mode

DC Braking

DC brake start frequency: 0.00% - upper limit frequency, Brake time: 0.0-60.0s; Brake current: 0.0-100% of motor's rated current.

Jog Control

Jog frequency range: 0.0Hz - maximum frequency, Jog acceleration/deceleration time: 0.1-999.9s

Simple PLC and Multi-segment Speed Running

Up to 7 segments of speed running

Build-in PID

Capable of implementing closed-loop control system for process control

Motor Parameter Identification

Static identification

Overvoltage, Overcurrent, Stalling, and Over-Excitation Control

Automatically limits current and voltage during operation, preventing frequent overcurrent, overvoltage, and trips

Torque Boost and Slip Compensation

Torque boost can be selected as automatic or manual, Slip compensation enhances low-speed loaded capacity and compensates for slip speed

Communication Function

RS485 communication

Braking Function

Braking function

Oscillation Suppression

Enables oscillation suppression to eliminate oscillations and prevent overcurrent in the inverter

PID Control

Built-in PID controller for process control

Swing Frequency Function

Outputs frequency, oscillating up and down around the set frequency, suitable for industries like textiles and chemical fibers

Operating Functions

Upper and lower frequency setting, frequency hopping operation, reverse operation limitation, frequency increment and decrement control, fault auto-recovery operation, and more.

Constant Pressure Water Supply Function

Maintains constant water pressure and automatically sleeps and wakes up based on pressure
